芯片组件

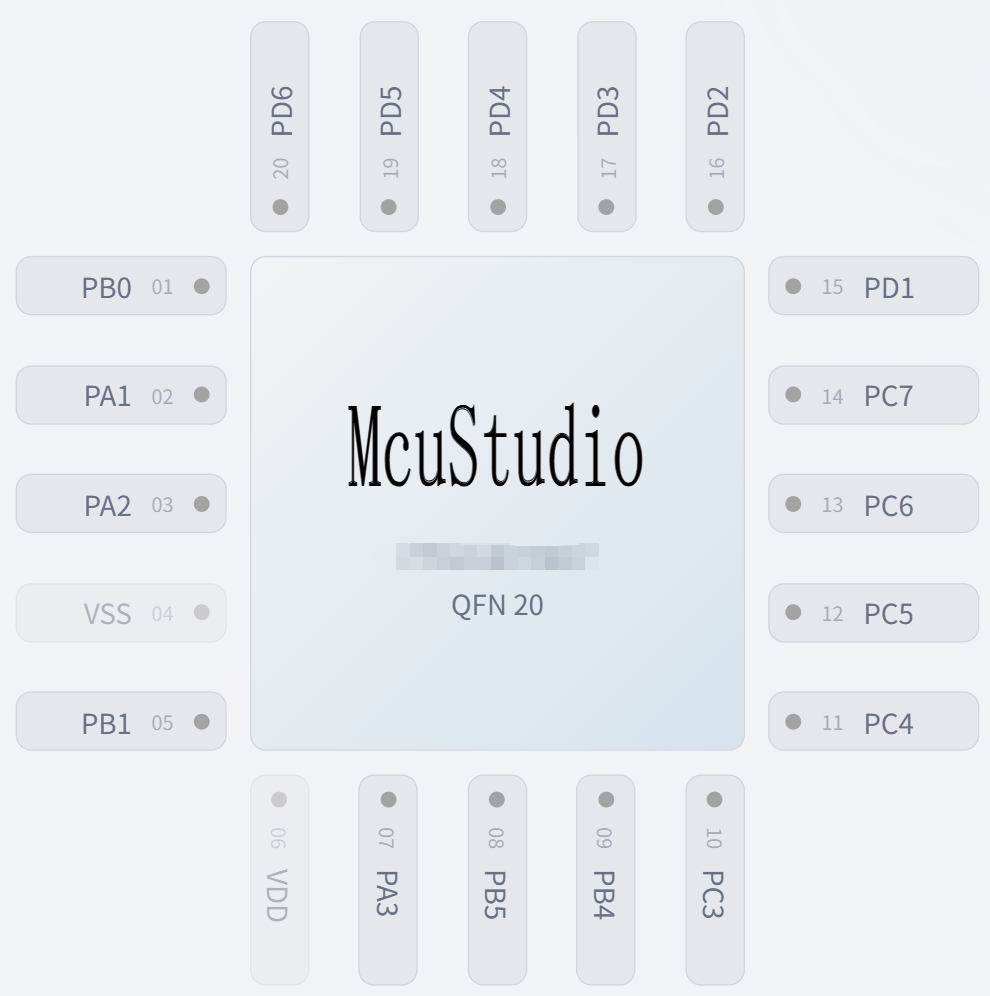

芯片引脚
- 引脚数据结构
module.exports = {
"packtype": "QFN",
"pintype": "QFP",
"pinsize": "20",
"pins": [
{
"dir": "left",
"num": 1,
"name": "PB0",
"port": "GPIOB",
"pin": "GPIO_PIN_0",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI0",
"value": "GPIO_EXTI0"
},
{
"name": "NRST",
"value": "NRST"
}
]
},
{
"dir": "left",
"num": 2,
"name": "PA1",
"port": "GPIOA",
"pin": "GPIO_PIN_1",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI1",
"value": "GPIO_EXTI1"
},
{
"name": "ADC_IN1",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "left",
"num": 3,
"name": "PA2",
"port": "GPIOA",
"pin": "GPIO_PIN_2",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI2",
"value": "GPIO_EXTI2"
},
{
"name": "ADC_IN0",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "left",
"num": 4,
"name": "VSS",
"port": "",
"pin": ""
},
{
"dir": "left",
"num": 5,
"name": "PB1",
"port": "GPIOB",
"pin": "GPIO_PIN_1",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI1",
"value": "GPIO_EXTI1"
},
{
"name": "UART1_TX",
"value": "AFIO_AF_1"
}
]
},
{
"dir": "down",
"num": 6,
"name": "VDD",
"port": "",
"pin": ""
},
{
"dir": "down",
"num": 7,
"name": "PA3",
"port": "GPIOA",
"pin": "GPIO_PIN_3",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI3",
"value": "GPIO_EXTI3"
},
{
"name": "SPI_CS",
"value": "AFIO_AF_1"
},
{
"name": "TIM1_CH2N",
"value": "AFIO_AF_2"
},
{
"name": "ADC_IN11",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "down",
"num": 8,
"name": "PB5",
"port": "GPIOB",
"pin": "GPIO_PIN_5",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI5",
"value": "GPIO_EXTI5"
},
{
"name": "I2C_SDA",
"value": "AFIO_AF_0"
},
{
"name": "TIM1_BKIN",
"value": "AFIO_AF_1"
}
]
},
{
"dir": "down",
"num": 9,
"name": "PB4",
"port": "GPIOB",
"pin": "GPIO_PIN_4",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI4",
"value": "GPIO_EXTI4"
},
{
"name": "I2C_SCL",
"value": "AFIO_AF_0"
},
{
"name": "TIM1_CH3N",
"value": "AFIO_AF_2"
}
]
},
{
"dir": "down",
"num": 10,
"name": "PC3",
"port": "GPIOC",
"pin": "GPIO_PIN_3",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI3",
"value": "GPIO_EXTI3"
},
{
"name": "TIM1_CH1N",
"value": "AFIO_AF_1"
},
{
"name": "TIM1_CH3",
"value": "AFIO_AF_2"
},
{
"name": "ADC_IN10",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "right",
"num": 11,
"name": "PC4",
"port": "GPIOC",
"pin": "GPIO_PIN_4",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI11",
"value": "GPIO_EXTI11"
},
{
"name": "MCO",
"value": "AFIO_AF_0"
},
{
"name": "TIM1_CH2N",
"value": "AFIO_AF_1"
},
{
"name": "TIM1_CH4",
"value": "AFIO_AF_2"
},
{
"name": "ADC_IN7",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "right",
"num": 12,
"name": "PC5",
"port": "GPIOC",
"pin": "GPIO_PIN_5",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI5",
"value": "GPIO_EXTI5"
},
{
"name": "SPI_SCK",
"value": "AFIO_AF_1"
},
{
"name": "TIM1_CH2",
"value": "AFIO_AF_2"
},
{
"name": "ADC_IN9",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "right",
"num": 13,
"name": "PC6",
"port": "GPIOC",
"pin": "GPIO_PIN_6",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI6",
"value": "GPIO_EXTI6"
},
{
"name": "SPI_MOSI",
"value": "AFIO_AF_1"
},
{
"name": "TIM1_CH1",
"value": "AFIO_AF_2"
},
{
"name": "ADC_IN8",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "right",
"num": 14,
"name": "PC7",
"port": "GPIOC",
"pin": "GPIO_PIN_7",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI7",
"value": "GPIO_EXTI7"
},
{
"name": "SWDIO",
"value": "AFIO_AF_0"
},
{
"name": "SPI_MISO",
"value": "AFIO_AF_1"
},
{
"name": "UART1_TX",
"value": "AFIO_AF_2"
}
]
},
{
"dir": "right",
"num": 15,
"name": "PD1",
"port": "GPIOD",
"pin": "GPIO_PIN_1",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI1",
"value": "GPIO_EXTI1"
},
{
"name": "SWCLK",
"value": "AFIO_AF_0"
},
{
"name": "UART1_RX",
"value": "AFIO_AF_1"
}
]
},
{
"dir": "up",
"num": 16,
"name": "PD2",
"port": "GPIOD",
"pin": "GPIO_PIN_2",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI2",
"value": "GPIO_EXTI2"
},
{
"name": "TIM1_CH3N",
"value": "AFIO_AF_1"
},
{
"name": "ADC_IN6",
"value": "GPIO_AF_Analog"
},
]
},
{
"dir": "up",
"num": 17,
"name": "PD3",
"port": "GPIOD",
"pin": "GPIO_PIN_3",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI3",
"value": "GPIO_EXTI3"
},
{
"name": "TIM1_CH4N",
"value": "AFIO_AF_1"
},
{
"name": "ADC_IN5",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "up",
"num": 18,
"name": "PD4",
"port": "GPIOD",
"pin": "GPIO_PIN_4",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI4",
"value": "GPIO_EXTI4"
},
{
"name": "TIM1_CH1N",
"value": "AFIO_AF_1"
},
{
"name": "ADC_IN4",
"value": "GPIO_AF_Analog"
},
{
"name": "ADC_BGN",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "up",
"num": 19,
"name": "PD5",
"port": "GPIOD",
"pin": "GPIO_PIN_5",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI5",
"value": "GPIO_EXTI5"
},
{
"name": "UART0_TX",
"value": "AFIO_AF_0"
},
{
"name": "ADC_IN3",
"value": "GPIO_AF_Analog"
},
{
"name": "ADC_INN",
"value": "GPIO_AF_Analog"
}
]
},
{
"dir": "up",
"num": 20,
"name": "PD6",
"port": "GPIOD",
"pin": "GPIO_PIN_6",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI6",
"value": "GPIO_EXTI6"
},
{
"name": "UART0_RX",
"value": "AFIO_AF_0"
},
{
"name": "ADC_IN2",
"value": "GPIO_AF_Analog"
},
{
"name": "ADC_BGO",
"value": "GPIO_AF_Analog"
},
{
"name": "VREF+",
"value": "GPIO_AF_Analog"
}
]
}
]
};
- 属性
| 属性名 | 说明 | 类型 | 默认值 | 选项 |
|---|---|---|---|---|
| packtype | 封装类型 | string | "" | |
| pintype | 显示类型 | string | "QFP" | "QFP","BGA" |
| pinsize | 引脚数 | string,number | "" | |
| pins | 引脚数据 | array | [] |
提示
pintype字段支持两种:QFP和BGA,
- QFP: 该类型芯片引脚在四周排布
- BGA: 该类型芯片引脚在底部矩阵排列
packtype为封装类型,为芯片的实际封装类型
pintype和packtype是不一样的
- pins数据结构
{
"dir": "left",
"num": 1,
"name": "PB0",
"port": "GPIOB",
"pin": "GPIO_PIN_0",
"af": [
{
"name": "Reset_State",
"value": "-1"
},
{
"name": "GPIO_Input",
"value": "GPIO_Input"
},
{
"name": "GPIO_Output",
"value": "GPIO_Output"
},
{
"name": "GPIO_Analog",
"value": "GPIO_Analog"
},
{
"name": "GPIO_EXTI0",
"value": "GPIO_EXTI0"
},
{
"name": "NRST",
"value": "NRST"
}
]
}
| 属性名 | 说明 | 类型 | 默认值 | 选项 |
|---|---|---|---|---|
| dir | 方向 | string | "" | "up","down","left","right" |
| num | 引脚编号 | number | "" | |
| name | 引脚名称 | string | "" | |
| port | 引脚端口定义 | string | "" | |
| pin | 引脚定义 | string | "" | |
| af | 引脚功能定义 | array | [] |
提示
dir和num的定义和pintype的值有关系，
- pintype为QFP:dir的值为："up","down","left","right"，num的值为引脚编号(从芯片的左上角，逆时针顺序递增)
- pintype为BGA:dir的行标识，num的列标识，比如A1引脚，其dir为A，num为1
- af数据结构
{
"name": "GPIO_Input",
"value": "GPIO_Input"
}
| 属性名 | 说明 | 类型 | 默认值 | 选项 |
|---|---|---|---|---|
| name | 功能名称 | string | "" | |
| value | 功能对应的值 | string | "" |

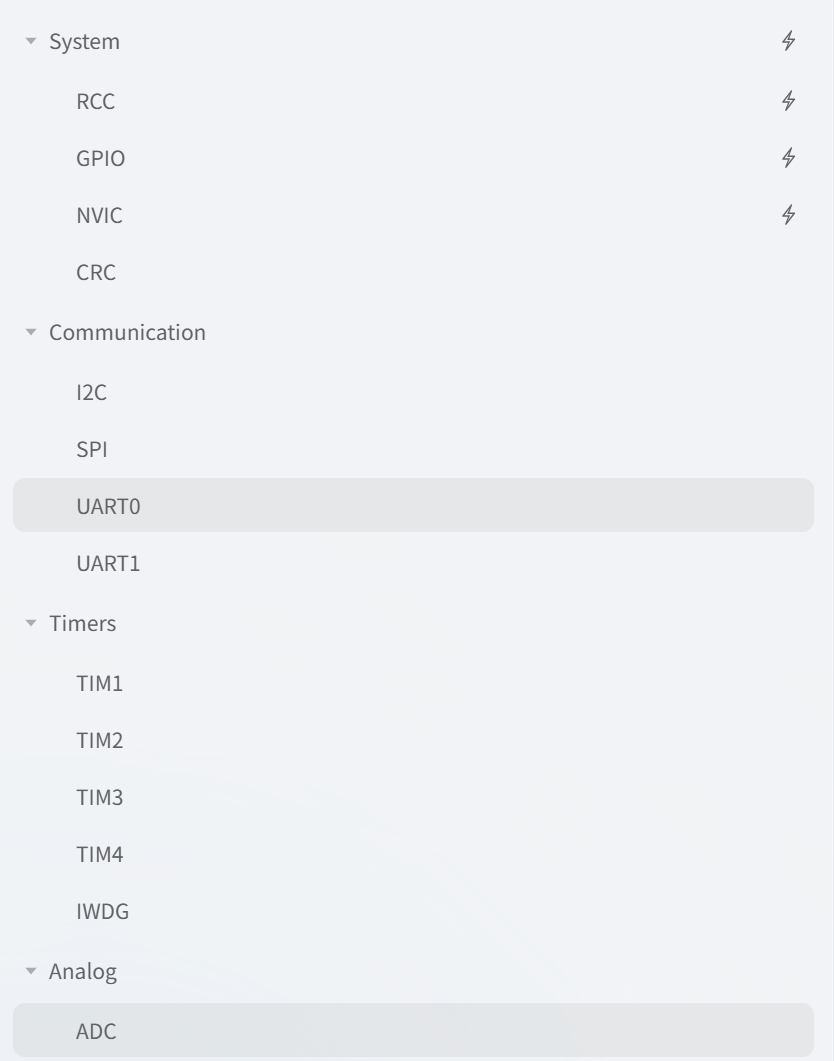

外设树
- 外设树数据结构
module.exports = {
System: {
RCC: {
peripheral_type: 'RCC',
version: '1.0'
},
GPIO: {
peripheral_type: 'GPIO',
version: '1.0'
},
NVIC: {
peripheral_type: 'NVIC',
version: '1.0'
},
CRC: {
peripheral_instance: 'CRC',
peripheral_type: 'CRC',
version: '1.0'
}
},
Communication: {
I2C: {
peripheral_type: 'I2C',
version: '1.0',
config: {
parameter: {
DataHoldTimeSel: {
$exist: "false",
},
OwnAddress2Masks: {
$exist: "false",
}
}
}
},
SPI: {
peripheral_type: 'SPI',
version: '1.0'
},
UART0: {
peripheral_type: 'UART',
version: '1.0'
},
UART1: {
peripheral_type: 'UART',
version: '1.0'
}
},
Timers: {
TIM1: {
peripheral_type: 'TIM1',
version: '1.0'
},
TIM2: {
peripheral_type: 'TIM2',
version: '1.0'
},
TIM3: {
peripheral_type: 'TIM2',
version: '1.0'
},
TIM4: {
peripheral_type: 'TIM2',
version: '1.0'
},
IWDG: {
peripheral_type: 'IWDG',
version: '1.0'
}
},
Analog: {
ADC: {
peripheral_type: 'ADC',
version: '1.0'
}
}
}
时钟树
- 时钟树数据结构
module.exports = {
cells: [
{
position: {
x: 210,
y: 230,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '30cdf6c5-ee81-4192-a770-5339e9b4e8b7',
},
{
group: 'right',
id: '4dabb223-cddd-4e61-b69f-f456f23780e3',
},
],
},
id: '7e2352a0-14dc-4fa9-a37b-0d322a5d0845',
zIndex: 1,
tools: {
items: [],
name: null,
},
_data: {
id: 'HSI',
label: 'HSI',
labelPosition: 'left',
type: 'text',
disabled: true,
value: 64000000,
// input_clk: '64000000',
// output_clk: '64000000',
style: {
background: '#FFFFFF',
color: '#333333',
textAlign: 'left',
},
shape: 'text',
},
},
{
position: {
x: 210,
y: 450,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: 'a8bb9ab5-4250-4ad3-98fd-0c6ade3ef325',
},
{
group: 'right',
id: 'bd2022b4-28dc-40b6-ae73-efd514eb6b98',
},
],
},
id: '9057aa24-6831-441f-bdfe-3d5014e3e1f5',
zIndex: 2,
tools: {
items: [],
name: null,
},
_data: {
id: 'LSI',
label: 'LSI',
labelPosition: 'left',
type: 'text',
disabled: true,
value: '32000',
// output_clk: '@COMPUTED_GET: $parent.value',
// input_clk: '32000',
style: {
background: '#FFFFFF',
color: '#333333',
textAlign: 'left',
},
shape: 'text',
},
},
{
position: {
x: 520,
y: 230,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '1d924fa0-fe0a-4132-92d7-be43f177cd6e',
},
{
group: 'right',
id: '4b37620c-7a58-4083-a333-2689fa8bab75',
},
],
},
id: 'd3450b69-9d9e-4f6b-8731-3fbbc30b47e2',
zIndex: 3,
tools: {
items: [],
name: null,
},
_data: {
id: 'AHBPrescaler',
label: 'AHBPrescaler',
labelPosition: 'top',
type: 'select',
disabled: '',
value: "0",
output_clk: '@COMPUTED_GET: $parent.input_clk/(parseInt($parent.value) + 1)',
input_clk: '@COMPUTED_GET: $clock.HSI.output_clk',
inmin: '0',
inmax: '64000000',
options: [
{ label: '/1', value: '0' },
{ label: '/2', value: '1' },
{ label: '/3', value: '2' },
{ label: '/4', value: '3' },
{ label: '/5', value: '4' },
{ label: '/6', value: '5' },
{ label: '/7', value: '6' },
{ label: '/8', value: '7' },
{ label: '/9', value: '8' },
{ label: '/10', value: '9' },
{ label: '/11', value: '10' },
{ label: '/12', value: '11' },
{ label: '/13', value: '12' },
{ label: '/14', value: '13' },
{ label: '/15', value: '14' },
{ label: '/16', value: '15' },
{ label: '/17', value: '16' },
{ label: '/18', value: '17' },
{ label: '/19', value: '18' },
{ label: '/20', value: '19' },
{ label: '/21', value: '20' },
{ label: '/22', value: '21' },
{ label: '/23', value: '22' },
{ label: '/24', value: '23' },
{ label: '/25', value: '24' },
{ label: '/26', value: '25' },
{ label: '/27', value: '26' },
{ label: '/28', value: '27' },
{ label: '/29', value: '28' },
{ label: '/30', value: '29' },
{ label: '/31', value: '30' },
{ label: '/32', value: '31' }
],
style: {
background: '#FFFFFF',
color: '#333333',
},
},
},
{
shape: 'edge',
id: '38dd344e-0438-4100-86c2-fec8c8f5866b',
zIndex: 6,
labels: [],
source: {
cell: '7e2352a0-14dc-4fa9-a37b-0d322a5d0845',
port: '4dabb223-cddd-4e61-b69f-f456f23780e3',
},
target: {
cell: 'd3450b69-9d9e-4f6b-8731-3fbbc30b47e2',
port: '1d924fa0-fe0a-4132-92d7-be43f177cd6e',
},
tools: {
items: [],
name: null,
},
},
{
position: {
x: 740,
y: 343,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '3b13da7d-8a64-4c54-a47f-da9ab2c5aada',
},
{
group: 'right',
id: 'dc0c1651-f46e-4368-939e-ffec6a862576',
},
],
},
id: '76534430-7707-4605-a1c1-5b34731385f5',
zIndex: 7,
tools: {
items: [],
name: null,
},
_data: {
id: 'ApbPrescaler',
label: 'ApbPrescaler',
labelPosition: 'top',
type: 'select',
disabled: '',
value: "0",
output_clk: "@COMPUTED_GET: $parent.input_clk/(parseInt($parent.value) + 1)",
input_clk: '@COMPUTED_GET:$clock.AHBPrescaler.output_clk',
inmin: '0',
inmax: '64000000',
options: [
{ label: '/1', value: '0' },
{ label: '/2', value: '1' },
{ label: '/3', value: '2' },
{ label: '/4', value: '3' },
{ label: '/5', value: '4' },
{ label: '/6', value: '5' },
{ label: '/7', value: '6' },
{ label: '/8', value: '7' },
{ label: '/9', value: '8' },
{ label: '/10', value: '9' },
{ label: '/11', value: '10' },
{ label: '/12', value: '11' },
{ label: '/13', value: '12' },
{ label: '/14', value: '13' },
{ label: '/15', value: '14' },
{ label: '/16', value: '15' },
{ label: '/17', value: '16' },
{ label: '/18', value: '17' },
{ label: '/19', value: '18' },
{ label: '/20', value: '19' },
{ label: '/21', value: '20' },
{ label: '/22', value: '21' },
{ label: '/23', value: '22' },
{ label: '/24', value: '23' },
{ label: '/25', value: '24' },
{ label: '/26', value: '25' },
{ label: '/27', value: '26' },
{ label: '/28', value: '27' },
{ label: '/29', value: '28' },
{ label: '/30', value: '29' },
{ label: '/31', value: '30' },
{ label: '/32', value: '31' }
],
style: {
background: '#FFFFFF',
color: '#333333',
},
shape: 'div',
},
},
{
shape: 'edge',
id: '9b69b0b8-4590-4c8b-9ea4-db656b3c1297',
zIndex: 8,
labels: [],
source: {
cell: 'd3450b69-9d9e-4f6b-8731-3fbbc30b47e2',
port: '4b37620c-7a58-4083-a333-2689fa8bab75',
},
target: {
cell: '76534430-7707-4605-a1c1-5b34731385f5',
port: '3b13da7d-8a64-4c54-a47f-da9ab2c5aada',
},
tools: {
items: [],
name: null,
},
vertices: [
{
x: 700,
y: 250,
},
{
x: 700,
y: 363,
},
],
},
{
position: {
x: 1020,
y: 150,
},
size: {
width: 40,
height: 140,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: 'd438716c-e65c-492c-961f-cc1e2d3ba107',
},
{
group: 'right',
id: '633bf8b1-baa0-4e49-9ac3-f7acc2511f55',
},
{
group: 'left',
id: 'fe2e8ce5-e128-445f-8ae0-8e81606e78ae',
},
],
},
id: 'f03668b7-1145-44ff-b0dc-9b2f1cd96eba',
zIndex: 9,
tools: {
items: [],
name: null,
},
_data: {
id: 'Tim1ClkSel',
label: 'Tim1ClkSel',
labelPosition: 'top',
type: 'mux',
disabled: '@COMPUTED_GET: !TIM1.enable',
value: "HSI",
output_clk: '@COMPUTED_GET: $clock.Tim1ClkSel.options.find(o => o.value === $parent.value).input_clk',
options: [
{
label: 'HSI',
value: 'HSI',
input_clk: '@COMPUTED_GET: $clock.HSI.output_clk',
disabled: '',
visible: '',
},
{
label: 'PCLK',
value: 'PCLK',
input_clk: '@COMPUTED_GET: $clock.ApbPrescaler.output_clk',
disabled: '',
visible: '',
},
],
style: {
background: '#FFFFFF',
color: '#999999',
activeColor: '#333333',
direction: 'left',
},
shape: 'mux',
},
},
{
shape: 'edge',
id: '7ff5cd98-aaab-4cca-acbf-278fa0a3a077',
zIndex: 10,
labels: [],
source: {
cell: '7e2352a0-14dc-4fa9-a37b-0d322a5d0845',
port: '4dabb223-cddd-4e61-b69f-f456f23780e3',
},
target: {
cell: 'f03668b7-1145-44ff-b0dc-9b2f1cd96eba',
port: 'd438716c-e65c-492c-961f-cc1e2d3ba107',
},
tools: {
items: [],
name: null,
},
vertices: [
{
x: 440,
y: 250,
},
{
x: 440,
y: 185,
},
],
},
{
shape: 'edge',
id: 'c1833dd3-9242-4691-8c56-7dd36007088d',
zIndex: 11,
labels: [],
source: {
cell: '76534430-7707-4605-a1c1-5b34731385f5',
port: 'dc0c1651-f46e-4368-939e-ffec6a862576',
},
target: {
cell: 'f03668b7-1145-44ff-b0dc-9b2f1cd96eba',
port: 'fe2e8ce5-e128-445f-8ae0-8e81606e78ae',
},
tools: {
items: [],
name: null,
},
vertices: [
{
x: 900,
y: 363,
},
{
x: 900,
y: 255,
},
],
},
{
position: {
x: 1237,
y: 200,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: 'aa01e7de-6d69-4cac-852f-419e7584c8f8',
},
{
group: 'right',
id: '4a5aa9b3-9eec-4dd0-afe5-ee6ed9611eea',
},
],
},
id: '0a85cfbc-24ca-4ab9-bf77-dc36f6b36062',
zIndex: 12,
tools: {
items: [],
name: null,
},
_data: {
id: 'TIM1CLK',
label: 'TIM1CLK',
labelPosition: 'right',
type: 'tag',
disabled: '',
value: 'tag',
// output_clk: "@COMPUTED_GET: $parent.input_clk",
input_clk: '@COMPUTED_GET: $clock.Tim1ClkSel.output_clk',
style: {
background: '#EEEEEE',
color: '#999999',
textAlign: 'left',
},
change: '',
shape: 'tag',
},
},
{
shape: 'edge',
id: '34703a34-885d-4b3e-9ee8-335750edea9a',
zIndex: 13,
labels: [],
source: {
cell: 'f03668b7-1145-44ff-b0dc-9b2f1cd96eba',
port: '633bf8b1-baa0-4e49-9ac3-f7acc2511f55',
},
target: {
cell: '0a85cfbc-24ca-4ab9-bf77-dc36f6b36062',
port: 'aa01e7de-6d69-4cac-852f-419e7584c8f8',
},
tools: {
items: [],
name: null,
},
},
{
position: {
x: 484,
y: 450,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '4a579ef6-3ac6-4b98-bbbe-8f852309947f',
},
{
group: 'right',
id: 'dd73cc0d-96b5-4cbb-a548-d1e762703939',
},
],
},
id: '5e0e3d1d-2329-41d1-9de0-8bd8889fa50d',
zIndex: 15,
tools: {
items: [],
name: null,
},
_data: {
id: 'TIM4',
label: 'TIM4',
labelPosition: 'right',
type: 'tag',
disabled: '',
value: 'tag',
// output_clk: '@COMPUTED_GET: $parent.input_clk',
input_clk: '@COMPUTED_GET: $clock.LSI.output_clk',
style: {
background: '#EEEEEE',
color: '#999999',
textAlign: 'left',
},
change: '',
shape: 'tag',
},
},
{
shape: 'edge',
id: 'bf2ab9ae-4a63-4d60-b47d-f1a2ff45c5e1',
zIndex: 16,
labels: [],
source: {
cell: '9057aa24-6831-441f-bdfe-3d5014e3e1f5',
port: 'bd2022b4-28dc-40b6-ae73-efd514eb6b98',
},
target: {
cell: '5e0e3d1d-2329-41d1-9de0-8bd8889fa50d',
port: '4a579ef6-3ac6-4b98-bbbe-8f852309947f',
},
tools: {
items: [],
name: null,
},
},
{
position: {
x: 484,
y: 551,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '3e3069f3-f635-4d9c-98c7-88b335ccbcbc',
},
{
group: 'right',
id: '7387b1f7-8755-4e2c-817c-5a2897081985',
},
],
},
id: '24406010-8785-4e29-949b-8449723598e8',
zIndex: 17,
tools: {
items: [],
name: null,
},
_data: {
id: 'IWDG',
label: 'IWDG',
labelPosition: 'right',
type: 'tag',
disabled: '',
value: 'tag',
input_clk: '@COMPUTED_GET: $clock.LSI.output_clk',
style: {
background: '#EEEEEE',
color: '#999999',
textAlign: 'left',
},
},
},
{
shape: 'edge',
id: '896bdb3a-af36-4917-94c0-f99e1903567b',
zIndex: 18,
labels: [],
source: {
cell: '9057aa24-6831-441f-bdfe-3d5014e3e1f5',
port: 'bd2022b4-28dc-40b6-ae73-efd514eb6b98',
},
target: {
cell: '24406010-8785-4e29-949b-8449723598e8',
port: '3e3069f3-f635-4d9c-98c7-88b335ccbcbc',
},
tools: {
items: [],
name: null,
},
vertices: [
{
x: 390,
y: 470,
},
{
x: 390,
y: 571,
},
],
},
{
position: {
x: 1237,
y: 343,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '66d5e90f-17d9-46d2-bef5-f9943ff111ac',
},
{
group: 'right',
id: 'f29b7c45-b93f-4568-ae19-a3b193369216',
},
],
},
id: '66c0cfbd-f909-4a63-9100-a9eda3bf4b2f',
zIndex: 21,
tools: {
items: [],
name: null,
},
_data: {
id: 'PCLK',
label: 'PCLK',
labelPosition: 'right',
type: 'tag',
disabled: '',
value: 'tag',
// output_clk: '@COMPUTED_GET: $parent.input_clk',
input_clk: '@COMPUTED_GET: $clock.ApbPrescaler.output_clk',
style: {
background: '#EEEEEE',
color: '#999999',
textAlign: 'left',
},
},
},
{
shape: 'edge',
id: '8e88d6d3-bde5-4ac8-b273-a97fe0459f46',
zIndex: 22,
labels: [],
source: {
cell: '76534430-7707-4605-a1c1-5b34731385f5',
port: 'dc0c1651-f46e-4368-939e-ffec6a862576',
},
target: {
cell: '66c0cfbd-f909-4a63-9100-a9eda3bf4b2f',
port: '66d5e90f-17d9-46d2-bef5-f9943ff111ac',
},
tools: {
items: [],
name: null,
},
},
{
position: {
x: 1237,
y: 420,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '4eb7ede0-80e4-4d96-bdbc-64608b028002',
},
{
group: 'right',
id: '09ae19e1-3db0-422d-9a7e-047424de4c00',
},
],
},
id: 'f22004e2-b695-4c52-a309-eebf0be697f5',
zIndex: 23,
tools: {
items: [],
name: null,
},
_data: {
id: 'TIM2',
label: 'TIM2',
labelPosition: 'right',
type: 'tag',
disabled: '',
value: 'tag',
// output_clk: '@COMPUTED_GET: $parent.input_clk',
input_clk: '@COMPUTED_GET: $clock.ApbPrescaler.output_clk',
style: {
background: '#EEEEEE',
color: '#999999',
textAlign: 'left',
},
change: '',
shape: 'tag',
},
},
{
position: {
x: 1237,
y: 510,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '49f8225b-8973-4ee9-8a0e-9b47b7efb4ab',
},
{
group: 'right',
id: '8d7cad35-696b-498b-92e7-78789be10c3b',
},
],
},
id: '17224dd0-bc64-4990-b353-1242b9d04667',
zIndex: 24,
tools: {
items: [],
name: null,
},
_data: {
id: 'TIM3',
label: 'TIM3',
labelPosition: 'right',
type: 'tag',
disabled: '',
value: 'tag',
// output_clk: '@COMPUTED_GET: $parent.input_clk',
input_clk: '@COMPUTED_GET: $clock.ApbPrescaler.output_clk',
style: {
background: '#EEEEEE',
color: '#999999',
textAlign: 'left',
},
change: '',
shape: 'tag',
},
},
{
position: {
x: 1237,
y: 601,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: 'aa3ab4ae-3c05-4bc6-a6c1-dee4ee0777fe',
},
{
group: 'right',
id: '1b7cdcc4-3ce6-498c-b51a-33f4421afa7c',
},
],
},
id: 'c9216972-cbaf-45a0-941d-a360a7f4068a',
zIndex: 25,
tools: {
items: [],
name: null,
},
_data: {
id: 'ADC',
label: 'ADC',
labelPosition: 'right',
type: 'tag',
disabled: '',
value: 'tag',
// output_clk: '@COMPUTED_GET: $parent.input_clk',
input_clk: '@COMPUTED_GET: $clock.ApbPrescaler.output_clk',
style: {
background: '#EEEEEE',
color: '#999999',
textAlign: 'left',
},
change: '',
shape: 'tag',
},
},
{
shape: 'edge',
id: '55cfb0e7-118e-4ce8-8cd1-b7dbce5b6e80',
zIndex: 26,
labels: [],
source: {
cell: '76534430-7707-4605-a1c1-5b34731385f5',
port: 'dc0c1651-f46e-4368-939e-ffec6a862576',
},
target: {
cell: 'f22004e2-b695-4c52-a309-eebf0be697f5',
port: '4eb7ede0-80e4-4d96-bdbc-64608b028002',
},
tools: {
items: [],
name: null,
},
vertices: [
{
x: 900,
y: 363,
},
{
x: 900,
y: 440,
},
],
},
{
shape: 'edge',
id: 'e246aab1-771f-4428-a35f-08ff294ef575',
zIndex: 27,
labels: [],
source: {
cell: '76534430-7707-4605-a1c1-5b34731385f5',
port: 'dc0c1651-f46e-4368-939e-ffec6a862576',
},
target: {
cell: '17224dd0-bc64-4990-b353-1242b9d04667',
port: '49f8225b-8973-4ee9-8a0e-9b47b7efb4ab',
},
tools: {
items: [],
name: null,
},
vertices: [
{
x: 900,
y: 363,
},
{
x: 900,
y: 530,
},
],
},
{
shape: 'edge',
id: 'f4f237f7-2fc2-4c08-9df9-68a8a2d91861',
zIndex: 32,
labels: [],
source: {
cell: '76534430-7707-4605-a1c1-5b34731385f5',
port: 'dc0c1651-f46e-4368-939e-ffec6a862576',
},
target: {
cell: 'c9216972-cbaf-45a0-941d-a360a7f4068a',
port: 'aa3ab4ae-3c05-4bc6-a6c1-dee4ee0777fe',
},
tools: {
items: [],
name: null,
},
vertices: [
{
x: 900,
y: 363,
},
{
x: 900,
y: 621,
},
],
},
{
position: {
x: 604,
y: 720,
},
size: {
width: 40,
height: 140,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'right',
id: 'aac792ce-790e-43e0-bed7-f321778a44a7',
},
{
group: 'left',
id: '031fa938-4f80-45c7-8f4e-ff355660f907',
},
],
},
id: 'dc270908-2de9-471b-aee2-5f5f1c87a38a',
zIndex: 36,
tools: {
items: [],
name: null,
},
_data: {
id: 'MCOSEL',
label: 'MCOSEL',
labelPosition: 'top',
type: 'mux',
disabled: '@COMPUTED_GET: !RCC.McoEnable.value',
value: "LSI",
output_clk: '@COMPUTED_GET: $parent.options.find(item => item.value === $parent.value).input_clk',
options: [
{
label: 'LSI',
value: 'LSI',
input_clk: '@COMPUTED_GET: $clock.LSI.output_clk',
disabled: '',
visible: '',
},
{
label: 'SYS_CLK',
value: 'SYS_CLK',
input_clk: '@COMPUTED_GET: $clock.HSI.output_clk',
disabled: '',
visible: '',
},
],
style: {
background: '#FFFFFF',
color: '#999999',
activeColor: '#333333',
direction: 'right',
},
shape: 'mux',
},
},
{
position: {
x: 384,
y: 770,
},
size: {
width: 120,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '94ce7baa-e7af-4238-86ce-bf178a8b6c0e',
},
{
group: 'right',
id: '90cdc0bd-963c-49b1-96ab-9dace736ad18',
},
],
},
id: '1add6335-8b8c-481f-9d55-9eb9a5378275',
zIndex: 37,
tools: {
items: [],
name: null,
},
_data: {
id: 'MCOPRE',
label: 'MCOPRE',
labelPosition: 'top',
type: 'select',
disabled: '@COMPUTED_GET: !RCC.McoEnable.value',
value: "0",
output_clk: '@COMPUTED_GET: $parent.input_clk/parseInt($parent.options.find(item => item.value === $parent.value).label.replace("/","")||1)',
input_clk: '@COMPUTED_GET: $clock.MCOSEL.output_clk',
inmin: '0',
inmax: '64000000',
options: [
{
label: '/1',
value: '0',
disabled: '',
visible: '',
},
{
label: '/2',
value: '1',
disabled: '',
visible: '',
},
{
label: '/4',
value: '2',
disabled: '',
visible: '',
},
{
label: '/8',
value: '3',
disabled: '',
visible: '',
},
{
label: '/16',
value: '4',
disabled: '',
visible: '',
},
],
style: {
background: '#FFFFFF',
color: '#333333',
},
change: 'const select_node = that.options.find((item)=>{return item.value == that.value})\n if(select_node){\n const div = select_node.label.includes("不分频")?1:parseFloat(select_node.label.replace("/",""))\n that.clk = that.inclk/div\n }',
shape: 'div',
},
},
{
shape: 'edge',
id: '0771be1c-bb40-4197-adc6-72406da83557',
zIndex: 38,
labels: [],
source: {
cell: 'dc270908-2de9-471b-aee2-5f5f1c87a38a',
port: '031fa938-4f80-45c7-8f4e-ff355660f907',
},
target: {
cell: '1add6335-8b8c-481f-9d55-9eb9a5378275',
port: '90cdc0bd-963c-49b1-96ab-9dace736ad18',
},
tools: {
items: [],
name: null,
},
},
{
position: {
x: 254,
y: 770,
},
size: {
width: 60,
height: 40,
},
view: 'vue-shape-view',
shape: 'vue-shape',
ports: {
groups: {
top: {
position: 'top',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
bottom: {
position: 'bottom',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
left: {
position: 'left',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
right: {
position: 'right',
attrs: {
circle: {
visibility: 'hidden',
r: 5,
magnet: true,
stroke: '#5F95FF',
strokeWidth: 1,
fill: '#fff',
},
},
},
},
items: [
{
group: 'left',
id: '78bd7a86-ac6e-4eb6-b66f-5ca607683740',
},
{
group: 'right',
id: '353fbec4-c719-4206-b7f5-f7f0e52722cb',
},
],
},
id: '09c5bebe-d740-44ff-ad00-5bf0f9e5cb92',
zIndex: 39,
tools: {
items: [],
name: null,
},
_data: {
id: 'MCOCLK',
label: 'MCOCLK',
labelPosition: 'left',
type: 'tag',
disabled: '@COMPUTED_GET: !RCC.McoEnable.value',
value: 'tag',
// output_clk: '@COMPUTED_GET: $parent.input_clk',
input_clk: '@COMPUTED_GET: $clock.MCOPRE.output_clk',
style: {
background: '#EEEEEE',
color: '#999999',
textAlign: 'left',
},
change: '',
shape: 'tag',
},
},
{
shape: 'edge',
id: '3e1c5749-8d57-4a29-9aea-01da73afac57',
zIndex: 40,
labels: [],
source: {
cell: '1add6335-8b8c-481f-9d55-9eb9a5378275',
port: '94ce7baa-e7af-4238-86ce-bf178a8b6c0e',
},
target: {
cell: '09c5bebe-d740-44ff-ad00-5bf0f9e5cb92',
port: '353fbec4-c719-4206-b7f5-f7f0e52722cb',
},
tools: {
items: [],
name: null,
},
},
],
version: 4
}
